A Better Pyro Funnel

Let's face it...pyrotechnics is a messy hobby. We work with a lot of compositions that contain very fine charcoal and metal powders that, when spilled, can make a nice mess of our clothes and workshop. Here's an idea that might help minimize one of the causes of spillage. Regular funnels usually have a long neck that clogs up easily with fine powders and clumpy compositions. Cardstock folded into a V-trough works a little better. This new funnel idea is a slight improvement on both concepts. It is also cheap and easy to do.



All you need is an empty soda can. You can probably get dozens from your cola-addicted Uncle Ned. Choose ones in pristine condition with no dents or wrinkles. Use a sturdy pair of scissors (not your wife's good sewing shears) and poke a hole into the side of the can near one end. Simply cut around the cylinder to remove both the bottom and the top of the can.

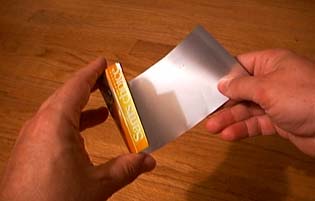

Now cut down the length of the can. When finished you will have a curly rectangle of aluminum about 4 inches wide by 8 inches long. From this rectangle you can cut two trapezoidal shapes with a long side of about 4 inches and a short side of about 2.5 to 3 inches. You can tailor the short side to the size of tube you will be filling with the funnel.
I usually rough cut the shapes with the scissors and then straighten all the edges with a desk top paper cutter. Finally, you will want to use the scissors to round off the sharp corners.
To use the funnel I either place some composition in the funnel while laying horizontally on the work bench and then pinch the short end to curl it as the funnel is applied to the target tube or I will hold the funnel in place and add the composition charge directly from the scoop. These funnels work so well because the aluminum has a smooth plastic coating which allows powders to slide easily and because their flexibility allows you to warp them to encourage the powders to slide. These funnels are easy to keep clean and, with care, will last a long time. When they get a little beat up, I just chuck them and make more.
